Determine the movement direction of the robot, keep the straight line clean, and ensure high cleaning coverage and low repetition.
Ensure that the robot walks close to the edge of the wall and has better corner cleaning function
Used to detect road conditions. If it encounters steps or grooves on the ground, the robot will stop moving so that the robot will not fall on the edge with a height difference.

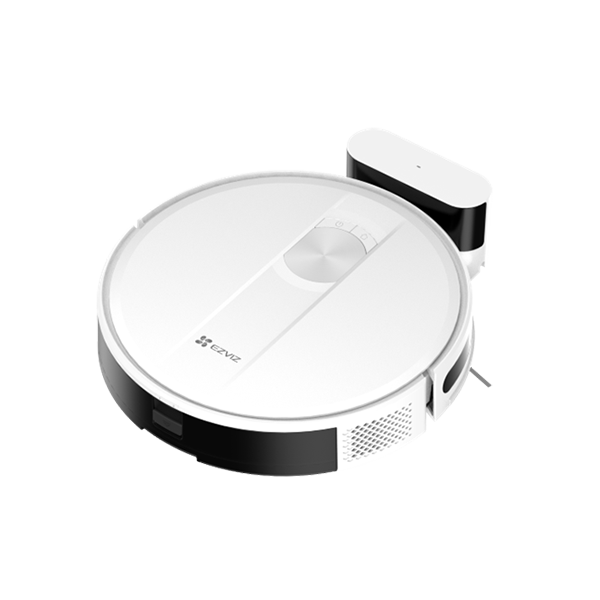

RC3/RC3 Plus- 8cm
Infrared detection technology means the robot can clean in dark environments using gyroscopes and inertial navigation technology.
This product has an infrared obstacle avoidance function, which can reduce collisions. However, if the object being hit is black, it may absorb infrared light, or the infrared obstacle avoidance function will be significantly reduced in a dark environment, so zero collisions cannot be achieved. And today, all friends and suppliers have canceled the claim of zero collision.
The robot itself also has rubber anti-collision strips to avoid damaging items as much as possible.
1. When starting to clean the whole house, the cleaning path will first be swept back and forth in a "S" shape, and then it will be swept along the wall to complete the cleaning of each area one by one.
2. In automatic cleaning mode, if the cleaning area is less than 10 square meters, it will clean twice by default.
RC3/RC3 Plus is equipped with gyro navigation, which mainly determines the walking direction and distance of the robot and the operating status of the motor, and can accurately locate the coordinates of the robot. Different from the random collision navigation mode, this product adopts a S-shaped path + Along-the-wall cleaning mode, which will significantly reduced missed scans.
